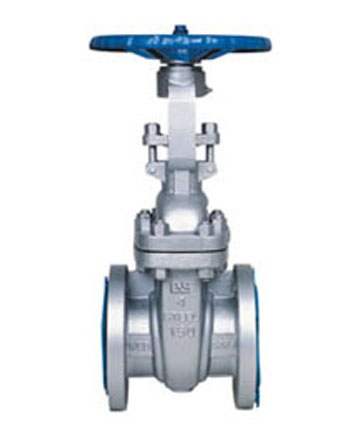

ANSI titanium gate valve
ANSI titanium gate valve
Author：admin Source： Date：2014-8-13 15:39:15 Popularity：
Label：
Technical Specification
Design Standard:API600,API6D
Face to face: ASME B16.10
Flanged ends:ASME B16.5
Test & Inspection: API598
Material Range:
Titanium Gr2: B367 Gr C2, B381 Gr F2, B348 Gr 2,TA1
Titanium Gr3: B367 Gr C3, B381 Gr F3, B348 Gr 3,TA2
Titanium Gr5: B367 Gr C5, B381 Gr F5, B348 Gr 5,TC4
Titanium Gr6: B367 Gr C6, B381 Gr F6, B348 Gr6,
Titanium Gr12: B367 Gr C12, B381 Gr F12, B348 Gr 12,TA10
Titanium Pd7B: B367 Pd7B, B381 Gr F7, B348 Gr7，TA9
Pressure Rating:
150-600Lb
Nominal Size:
DN15-DN800 1/2”-32”
Serve Application:
The special material valves are usde in many fields like chemical industry, Air defense Weapons,Petrochecmicals,Marine Development,and Power industry which have strong corrosive mediums like acid,alkali and salt.
