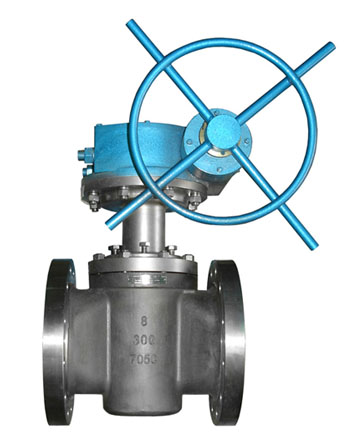

Zirconium plug valve
Zirconium plug valve
Author：admin Source： Date：2014-8-13 16:58:16 Popularity：
Label：
Technical Specification
Design Standard:API599,
Face to face: ASME B16.10,GB/T12221
Flanged ends:HG,GB,JB,API,ANSI,ISO,BS,DIN,NF,JIS
Test & Inspection: JB/T9092,API598
Material Range:
Zirconium702: B752 702C, B493 R60702, B550 R60702
Zirconium705: B752 705C, B493 R60705, B550 R60705
Pressure Rating:
1.0-10.0MPa 150-600Lb
Nominal Size:
DN15-DN300 1/2”-12”
Driving Manner:
Manual operated, Gear operated, Pneumatic operated, Electric operated
Serve Application:
The special material valves are used in many fields like chemical industry,Air defense Weapons,Petrochemicals,Marine Development,and Power industry which have strong corrosive mediums like acid,alkali and salt.
